Does this cable comply with cabling standards?​


Certifiers answer the question, “Does this cable comply with cabling standards? (e.g. TIA-568-B.1 Category 6 or ISO 11801 2nd Edition Class E)”.


These tools are used by commercial datacom installers/contractors and enterprise facility managers, and are required by cabling manufacturers, to ensure new cabling fully meets requirements of cabling standards and the cabling manufacturer’s warranty.

Applications

Fiber optic cables are now an integral element in industrial networks, even for short distances, when it comes to meeting the demands for higher bandwidth. Installation of optical fibers, however, requires clean working conditions, correct procedures and a fair amount of knowledge. Cleanliness, in particular, plays an important role in the optical fibers themselves. According to a study by NTT Advanced Network Technology, dirty fiber end surfaces or connectors are responsible for up to 96 percent of network failures. Therefore, it is a good idea to select an easy-to-operate OTDR that can be connected via interfaces to an optical fiber microscope.​

  • Certifying according to standards Class D/E/EA & Cat 5e/6/6A
  • Meets TIA and ISO Level IIIe accuracy requirements, ETL verified
  • Industrial Ethernet cable testing with M12 connectivity
  • Advanced reporting and documentation
  • Most affordable certifier for premise cabling and Industrial Ethernet


The Cat 6A WireXpert 500 copper cable certifier is fully upgradable to WireXpert 500-PLUS that includes fiber tier 1 certification and is also upgradeable to WireXpert 4500 to include Category 8 certification.

WireXpert 500 is an affordable and upgradable cable tester that can grow with your cable certification needs. Invest today only in options that are really needed and upgrade the device later when necessary. The individual options can be upgraded with a license. For example: If today you install copper up to Cat 6A, and in the future require additional fiber cabling installations, you could then upgrade your WireXpert 500 to a WireXpert 500-PLUS, a copper and fiber certifier. If you need in the future, certification up to Cat 8, all models can be upgraded to that frequency range as well.

Benefits

  • FiberXpert OTDR 5000 handheld device
  • Soft case including shoulder strap
  • Power adapter
  • Hard carrying case
  • Quick start guide
  • CD with documentation
  • Complete Tier 1 fibre optic link measurement
  • Optical loss (attenuation) measurement
  • Optical power measurement
  • Continuity testing
  • Measuring cable / reference fibre test

​​Scope of Delivery (WX500)

  • Cabling certification up to Cat 8, Class I and II
  • The combined copper- and fiber optic testing makes the device most suitable for data centers and large installations
  • Acceptance measurement on cabling for 90W PoE possible in scope of delivery
  • Acceptance test of industrial copper installations up to 10Gb/s
  • External cabling on buildings
  • Special mechanical engineering with special connecting hardware

Applications

  • Certify cables up to Cat 8, Class I and II
  • Combined copper and fiber cable testing makes the device most suitable for data centers and large installations

Benefits

aRTICLE SOFTING NO. 228280

WIREXPERT 4500 pro

​The WireXpert with adaptors for optional DCRU measurement
(Fiber Optic, DCRU Test Adaptors optionally available)

  • Copper cabling certification  up to Class EA / Cat 6As, suitable for Ethernet speeds up to 10Gb/s
  • Certification of multimode and singlemode fiber optic cabling
  • Applicable for standard, industrial and home cabling systems
  • Standard-compliant tier 2 measurement of fiber optic cables
  • Tabular list of link events including their evaluation
  • Graphical display of reflection curve for a length-dependent evaluation of all events in terms of reflection and attenuation
  • Automatic pass/fail analysis of measurement results in accordance with the TIA/IEC limits
  • Automatic macrobend identification
  • Integrated attenuation analyzer
  • Professional measurement protocols thanks to eXport evaluation software
  • Large color touch display
  • Optional optical fiber microscope including adapter for the most common fiber optic connectors


The handy, optical time domain reflectometer is available as a combi-device for multimode 850/1300 nm and single mode 1310/1550 nm. For both multimode and single mode fibers, the FiberXpert OTDR 5000 has a very high dynamic range with an event dead zone of < 80 cm, meaning that it is designed for measuring and documenting short fiber links in accordance with standards and for identifying any faults. Further measurement functions, such as attenuation measurement and an optical power level analyzer, allow you to exactly determine the link attenuation and measure the output of active network components. The automatic pass/fail analysis takes place in accordance with the TIA/IEC limits. With this OTDR, standard-compliant tier 2 measurements are as easy as creating professional measurement protocols. Using the new matching optical fiber microscope - which can easily be connected to the OTDR via USB - fiber ends and link end surfaces can be quickly checked and assessed in accordance with IEC 61300-3-35. And all this at just the touch of a button.​

  • Extended copper cable certification up to 500 MHz, Class D/E/EA & Cat 5e/6/6A
  • Meets and exceeds TIA and ISO Level IIIe accuracy requirements, ETL verified
  • Includes all accessories for measurements on industrial M12D, M12 X and RJ45 routes
  • Measures the cabling structures required for industrial applications, e.g.: end-to-end cabling, MPTL


The WireXpert 500 measurement solution for Industrial Ethernet cabling is suitable for measurementson LAN cabling with Industrial Ethernet connection technology. The Industrial Kit contains M12 D-coded and M12 X-coded interfaces, as well as RJ45 interfaces, which allow 10 Gigabit-capable Industrial Ethernet cabling to be measured efficiently.

Especially for applications in industrial data cabling, the kit includes, in addition to the WireXpert 500, adaptations for a variety of LAN cabling with Industrial Ethernet connection technology.

  • Copper measurements up to Cat 8, Class I and II
  • Optional adaptors for multimode and singlemode fiber
  • DC resistance unbalance (DCRU) adaptors include in the kit
  • 2x WireXpert 500 test units
  • 2x Li-Ion batteries
  • 2x Stylus with Cords
  • 2x Display protection cover
  • 2x Cat 6A Permanent Link Adapter
  • 2x Cat 6A Permanent Link Test Cords
  • 2x Cat 6A Channel Adapter
  • USB Stick w/ reference manual and eXport software
  • 2x Talk sets
  • 2x AC Power Adapters
  • 2x Country Specific Power Cords
  • Calibration certificate
  • Quick Reference Guide
  • Soft Carry Case

Best entry product for copper cable certification for the most common Ethernet speeds up to 10Gb/s

Complete solution for copper and fiber cable testing

  • Certifier up to 2500 MHz
  • State-of-the-art cable certification for all standards: Class D/E/EA/F/FA, Cat 5/5e/6/6A/7/7A, as well as Cat 8 and Class I & II
  • Meets and exceeds the requirements of ISO Level VI, V, IV, IIIe and TIA Level 2G and IIIe accuracy requirements, ETL verified
  • Supports advanced certification for fiber optic cables operating at 850/1300nm (multimode) and 1310/1550nm (singlemode)
  • Advanced reports and documentation on cabling


WireXpert 4500 has Adapters available for all Cat 8 and and ISO Class I and II standards, which means you are equipped for new cabling standards up to 40 Gb/s.


WireXpert provides certification in accordance with Cat 6/Cat 6A/Class EA and supports certification of fiber optic installations operating at 850/1300nm and 1310/1550nm. A range of cable testing Adapter Modules are available for coax, M12-D-coded, and X-coded.​

Applications

​​Scope of Delivery (FiberXpert 700)

​​Scope of Delivery (FiberXpert 5000)

  • 1 WireXpert 500 Local - with cover, no measuring adapter
  • 1 WireXpert 500 Remote- with cover, jno measuring adapter
  • 2 power supplies
  • 2 power cables
  • 2 headphones

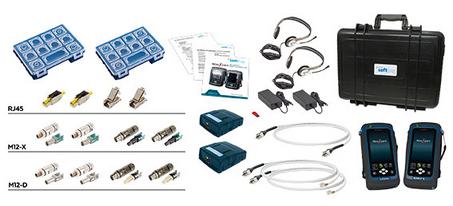

  • 1 Envelope with calibration certificate, USB stick, quick start guide
  • 2 Industrial adapters
  • 2 TERA to preLink® measuring cables
  • 1 TERA-TERA cable 2 m
  • 2 preLink® M12 D socket
  • 2 preLink® M12 X socket
  • 2 preLink® M12 D plug
  • 2 preLink® M12 X connector
  • 2 preLink® RJ45 socket
  • 2 preLink® RJ45 plug
  • 1 Hard case
  • 2 plastic sorting boxes for preLink® plugs and sockets

aRTICLE SOFTING NO. 237114

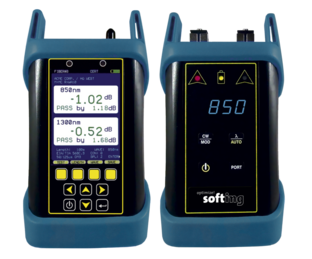

​FiberXpert 700 & Quad Attenuation Measurement Kit for mm & sm

Intuitive, flexible, fast measurement of fibre optic links

  • 2x Main certification test units
  • 2x Li-Ion batteries
  • 2x Stylus with Cords
  • 2x Display protection cover
  • 2x Cat 6A Permanent Link Adapter
  • 2x Cat 6A Permanent Link Test Cords
  • 2x Cat 6A Channel Adapter
  • USB Stick w/ ref. manual and eXport software
  • 2x Talk sets
  • 2x AC Power Adapters
  • 2x Country Specific Power Cords
  • Calibration certificate
  • Quick Reference Guide
  • Soft carry bag

ESB Commercial Agents Ltd.


​​Scope of Delivery (WX500)

​​​Differentiation

​​Scope of Delivery (WX500)

A Closer Look at Certification
Certification is the most rigorous of all cable testing. Performed primarily by commercial datacom installers, this is the final step required by connectivity OEMs to grant their warranties for properly installed cabling projects. A certification test tool makes many types of measurements across predefined frequency ranges and compares the detailed results to standards set by the Telecommunications Industry Association (TIA) {ANSI/TIA/EIA-568-B.1} or International Standards Organization (ISO) (ISO/IEC 11801 Ed.2). The results from these measurements determine if a link is compliant with a category or Class of cable (for example, category 5e, category 6, Class D). Certification tools are the only tools that provide Pass or Fail information on the cabling, in accordance with TIA or ISO standards.

  • Complete kit for measurements in industrial environments with RJ45 and M12 connecting hardware
  • Upgradeable for copper measurements up to Cat 8 and ISO class I and II
  • Upgradeable for fiber optic measurements
  • Complete Tier 1 fibre optic measurement
  • Color LCD shows PASS / FAIL status
  • Up to 10,000 readings can be stored in internal memory
  • Prints official test reports via PC software


The process of testing a network installation to ensure that it meets specified standards is called certification. This often requires paper documentation as proof of compliance with the standards. The FiberXpert 700 Quad MM/SM Test Kit contains the tools necessary to certify fibre connections to a variety of common cabling standards in singlemode and multimode networks, commonly referred to in the industry as Tier 1 certification.

The calibrated measurement kit can be used to perform standardised link certifications for multimode and singlemode fibre links and print the official test reports directly from the PC software. For the tests, the user has an unlimited number of configurations for different scenarios. Automatic wavelength detection and data storage ensure that testing is completed in the shortest possible time while eliminating the risk of operator error. The results of the measurements can be stored directly in the internal memory, up to 10,000 measurements.

The FiberXpert 700 Quad MM/SM Test Kit is also characterised by simple operation and user-friendly features. This already starts with the set-up process, which is supported by a link wizard with helpful graphics on the screen. For quick differentiation, the result is displayed directly on the colour LCD as PASS / FAIL status based on the colour. The kit also has a rechargeable lithium polymer battery.​

​​​Differentiation

​​Scope of Delivery (WX500)

​​​Differentiation

Combi solution for the most demanding measurements on copper and fiber optic cables

Smart Link Mapper translates a difficult-to-understand OTDR measurement into a clear, easy-to-read diagram of the measured link. From the diagram, the pass/fail information of each event on the link, such as connectors or splices, can be read directly. The often-difficult interpretation of an OTDR trace thus becomes child's play.

Applications

​​​Certification of fiber optic networks made easy

  • Best cost/performance ratio for certification of copper cabling up to 10Gb/s
  • Upgradeble from Cat 6A copper cable testing to Cat 8 and ISO class I and II

aRTICLE SOFTING NO. 228071

WIREXPERT 500

​The most affordable cable tester for copper LAN cable certification

  • Certifier up to 2500 MHz
  • State-of-the-art cable certification for all standards: Class D/E/EA/F/FA, Cat 5/5e/6/6A/7/7A, as well as Cat 8 and Class I & II
  • Meets and exceeds the requirements of ISO Level VI, V, IV, IIIe and TIA Level 2G and IIIe accuracy requirements, ETL verified
  • Supports advanced certification for fiber optic cables operating at 850/1300nm (multimode) and 1310/1550nm (single mode)
  • Advanced reports and documentation on cabling


The successfull WireXpert 4500 is now also available in an configuration WireXpert 4500-PRO for users that install cabling for 4 pair PoE (4PPoE) appplications and thus require the optional DCRU measurement.

A cable certifier for all standards
WireXpert also provides certification in accordance with Cat 6/Cat 6A/Class EA and supports advanced certification of fiber optic installations operating at 850/1300nm and 1310/1550nm. In addition, a range of measurement modules are available, e.g. for coax, M12-D-coded and X-coded.

DCRU – DC-Resistance Unbalance ex works
WireXpert 4500-PRO ships with Cat 6A + permanent link and channel adaptors instead of the regular Cat 6A adaptors. Cat 6A+ Adaptors enable the according to ISO/IEC optional DCRU test (DC-Resistance unbalance), which is particular important for cabling that should support 4PPoE ( = 90W remote powering over twisted pair cabling).

aRTICLE SOFTING NO. 228335

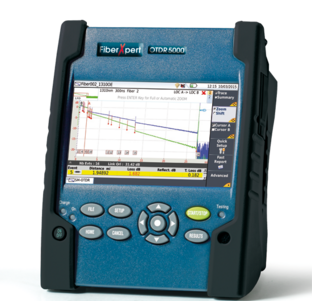

FiberXpert OTDR 5000

Measuring multimode/single mode fibers

  • 2x Main certification test units
  • 2x Li-Ion batteries
  • 2x Stylus with Cords
  • 2x Display protection cover
  • 2x Cat 6A + Permanent Link Adapter
  • 2x Cat 6A Permanent Link Test Cords
  • 2x Cat 6A + Channel Adapter
  • USB Stick with reference manual and eXport software
  • 2x Talk sets
  • 2x AC Power Adapters
  • 2x Country Specific Power Cords
  • Calibration certificate
  • Quick Reference Guide
  • Soft Carry Case

aRTICLE SOFTING NO. 228144

WIREXPERT 500 plus

​The most affordable cable tester for copper & fiber LAN cable certification (Fiber Optic Test Adaptors optionally available)

Best entry product for copper cable certification for the most common Ethernet speeds up to 10Gb/s

Protection for launch fibers

aRTICLE SOFTING NO. 228335

WIREXPERT 500 industrial kit

Perfectly equipped for measurements in the industrial environment

aRTICLE SOFTING NO. 228070

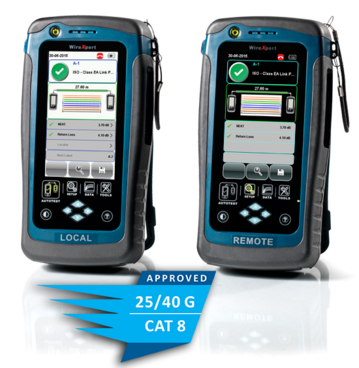

WIREXPERT 4500
