Application
- 2 DC Resistance Unbalance channel test adapters with RJ45 sockets
- soft pouch
- QSG
- 2x Coax Adapter
- 2x Test cords with F connectors
- 2x coupler F/F
- 1x test report
- 1x termination
Scope of Delivery (228271)
aRTICLES SOFTING NO. 228271, 228273
Industrial Ethernet cabling test ADAPTER FOR WireXpert
With the roll-out of high power PoE (Power over Ethernet) applications up to 60 or 100W, the Direct Current (DC) resistance of twisted pair cabling becomes an important parameter. If the DC resistance of a cable pair is too high and/or the DC resistance between pairs or even within wires of a pair differs too much, the temperature of that pair or wire can increase above the allowed cable or connector specification. As a result, that cabling will suffer accelerated aging or even damaging: Furthermore, there is also a significant risk to lose data due to signal distortion. Therefore, ISO/IEC, TIA and Cenelec have defined testing of DCRU as an optional parameter that can be added to regular cable certification, in case the use of high power PoE is planned for a specific cabling installation.
coax Adapter for wirexpert
Coax Cable Solution
Scope of Delivery (Class FA Adapters)
Application
- RJ45 measurement tip for RJ45 permanent link certification cord LONGLIFE (1 piece)
Scope of Delivery (228296 - tip)
DCRU CAT 6A+ Test Adapters for wirexpert
Scope of Delivery (Patch Cord)
- RJ45 permanent-link certification cord LONGLIFE- Class EA/Cat. 6A
Test tools
ADAPTERS
Application
Application
WireXpert supports the industrial end-to-end link applications with the Industrial Ethernet adapter kits. Separate kits are available for two-pair (D-Coded) and four-pair (X-coded) industrial Ethernet test.
WireXpert is the first cable certification tester with full support for X-coded industrial Ethernet cabling. These kits feature adapters with high performance TERA interface and test cords terminated in M12 test connectors. This approach provides flexibility particularly in space constrained industrial outlets as test instrument does not need to directly attach to the link under test. Second, this approach improves longevity of the adapter because extensive use will wear out only the test cords, not the adapter.
- Testing of Industrial Ethernet, End-to-end-links or hybrid links (M12-RJ45)
- Easy selection of test limits including PROFINET limits
- Support for user-defined customized test limits
- Selection of 2-pair or 4-pair configurations
- Seamless reporting in eXport software with copper test results
- Cost effective replacement of worn out test cords
Supported Connectors:
TERA
GG45/ARJ45
MMC3000pro (in prepararation)
- Five times faster testing with the CAT6A patch cord test completed in only 10 seconds
- Test both patch cord ends in one single test
- Cut operating costs in half with doubling the lifecycle of each "exchangeable" jack
- Avoid maintaining multiple protocols and reports on a single patch cord. WireXpert generates a single page report on each patch cord
Coax Cabling solution has a wide RF measurements frequency range of 1-2,400 MHz. The Autotest takes about 15 seconds and both dual-ended and single-ended testing can be performed. There are customizable test limits for insertion loss and return loss.
- RF measurements frequency range: 1-2,400 MHz
- Autotest time: 15 seconds
- Customizable test limits for insertion loss and return loss
- Both dual-ended and single-ended tests
Supported Connectors:
F connector (built-in)
Others via adapters
Longlife RJ45 Permanent Link measurement cable with replaceable tips
VARIOUS REPLACABLE COMPONENTS AND ESSENTIALS
Depending on the tester you can utilise special adapters for special measurements.
Keep scrolling for fiber and copper adapters including DCRU, industrial ethernet, Class FA, Coax and much more!!
Choose between a wide range of options (module, test cords and reference cords w/ 3 different connectors)
aRTICLES SOFTING NO. 228054, 228006 & more
- WX_AD_7A_GG45_PCORD2 | CAT7A patch cord test kit (pair)
- WX_AD_6A_PCORD2 | CAT6A patch cord test kit (pair)
- WX_AD_6_PCORD2 | CAT6 patch-cord test kit (pair)
- WX_AD_5e_PCORD2 | CAT5e patch-cord test adapter (pair)
- WX_AC_6A_PCTEST_JACK2 | A pair of CAT6A patch cord test jacks
- WX_AC_6_PCTEST_JACK2 | A pair of CAT6 patch cord test jacks
- WX_AC_5e_PCTEST_JACK2 | A pair of CAT5e patch cord test jacks
- WX_AC_6A_REF_PCORD1 |Reference CAT6A patch cord
- WX_AC_6_REF_PCORD1 |Reference CAT6 patch cord
- WX_AC_5e_REF_PCORD1 |Reference CAT5e patch cord
Application
Scope of Delivery (WX_AD_COAX2)
aRTICLES SOFTING NO. 228017
Scope of Delivery (228295 - link)

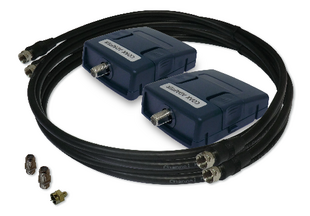

- Round off the versatility of the WireXpert. The coax adapters enable you to perform certifications up to 2,400MHz
- Rapidly detect weaknesses and disruptions in coaxial cabling systems
- Support of custom-defined test limits for specialized applications
class fa test adapters
WX_AD_IND_D_E2EKIT
Industrial Ethernet (D-Coded) End-to-End link testing kit
WX_AD_IND_X_E2EKIT
Industrial Ethernet (X-Coded) End-to-End link testing kit
aRTICLES SOFTING NO. 228295, 228296
Poor quality patch cords are often cause of under-performance of otherwise good quality cabling channels. It is a good practice to confirm the performance of purchased patch cords.
WireXpert offers an efficient way for quickly identifying and recording the performance of patch cords. With its fast and accurate dual-ended testing, WireXpert's patch cord test kits are suitable for both manufacturing testing, as well as for incoming inspection at end user premises.
WireXpert patch cord test kits are available for testing CAT 5E, CAT 6 and CAT 6A patch cords.
- Fast, 10-seconds autotest performs dual ended patch-cord certification testing
- Intuitive selection of test configuration and limits
- Kits available testing against all ISO and TIA patch-cord standards
- Support for user-defined customized test limits
- Seamless reporting in eXport software with copper test results
- Automated standards based label creation, one label per patch-cord
- Easy replacement of worn out patch-cord test jacks without opening the adapter
Supported Connectors:
RJ45
- 2 DC Resistance Unbalance permanent link adapters with TERA sockets
- soft pouch
- QSG
Application
- Permanent Link measurement up to 500MHz in compliance with ISO/IEC, EN, TIA, DIN and more standards
- RJ45 centered connector compliant to ISO/IEC standards
- Field replaceable RJ45 connector
- Extremely short RJ45 measurement connector enables measurements in tight spaces
The Longlife measuring cables are compatible with all WireXpert series copper certifiers, allowing very cost effective permanent link measurements with exchangeable RJ45 connectors.
Scope of Delivery (Industrial)
During permanent link measurements the RJ45 plug of the measuring cable is the main wearing part because the RJ45 plugs age over time due to repeated insertions and have to be replaced. The longlife measurement cables feature a field replaceable RJ45 plug, which can be changed by the customer in just a few minutes. Corresponding replacement parts are offered by Softing. Measurement cables can also occasionally be damaged in the field, e.g. by being jammed in steel cabinet doors or device cases. Another advantage of the longlife measurement cables is that the measurement cable itself is a comparatively inexpensive and easy-to-exchange spare part.
With the roll-out of high power PoE (Power over Ethernet) applications up to 60 or 100W, the Direct Current (DC) resistance of twisted pair cabling becomes an important parameter. If the DC resistance of a cable pair is too high and/or the DC resistance between pairs or even within wires of a pair differs too much, the temperature of that pair or wire can increase above the allowed cable or connector specification. As a result, that cabling will suffer accelerated aging or even damaging: Furthermore, there is also a significant risk to lose data due to signal distortion. Therefore, ISO/IEC, TIA and Cenelec have defined testing of DCRU as an optional parameter that can be added to regular cable certification, in case the use of high power PoE is planned for a specific cabling installation.
aRTICLES SOFTING NO. 228276, 228277 & more
With the roll-out of high power PoE (Power over Ethernet) applications up to 60 or 100W, the Direct Current (DC) resistance of twisted pair cabling becomes an important parameter. If the DC resistance of a cable pair is too high and/or the DC resistance between pairs or even within wires of a pair differs too much, the temperature of that pair or wire can increase above the allowed cable or connector specification. As a result, that cabling will suffer accelerated aging or even damaging: Furthermore, there is also a significant risk to lose data due to signal distortion. Therefore, ISO/IEC, TIA and Cenelec have defined testing of DCRU as an optional parameter that can be added to regular cable certification, in case the use of high power PoE is planned for a specific cabling installation.
Reach us at: support@esbagents.com
Scope of Delivery (228273)
Patch Cord Test Adapter for wirexpert
Fast and accurate dual-ended testing
aRTICLES SOFTING NO. 228294, 228163 & more
ESB Commercial Agents Ltd.

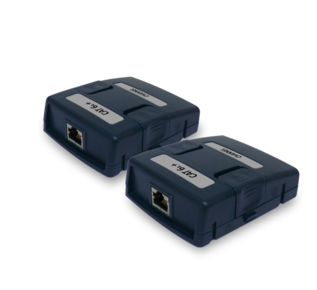

CAT6A+ adapters for the WireXpert Series enable all WireXpert 500, 500-PLUS and 4500 devices to test Direct Current Resistance Unbalance (DCRU) on twisted pair shielded and unshielded LAN cabling additionally to the regular Autotest parameters. CAT6A+ adapters also help to identify on shielded cables whether the cable shield is connected to the correct socket.
- Measures DC Resistance Unbalance between and in pairs of twisted pair LAN cabling in accordance with TIA and IEC specifications
- Allows additionally testing of all regular Autotest parameters such as Insertion Loss, NEXT, Return Loss, ACR-N and ACR-F and related Power-Sum values
- Shield Integrity Test to determine correct connection of the shield to the cabling connections
- Supports testing of crossover cables
The Longlife measuring cables are compatible with all WireXpert series copper certifiers, allowing very cost effective permanent link measurements with exchangeable RJ45 connectors.
WireXpert 4500 provides accurate measurements over a wide bandwidth from 1MHz to 2.5GHz, making it the tester of choice for certifying high performance cabling systems like Class FA and proposed CAT 8.
- Autotest Class FA links and channels takes just 15 seconds
- First tester in the industry with measurement bandwidth far exceeding Class FA requirements
Supported Connectors:
TERA
GG45/ARJ45
MMC3000pro (in prepararation)
